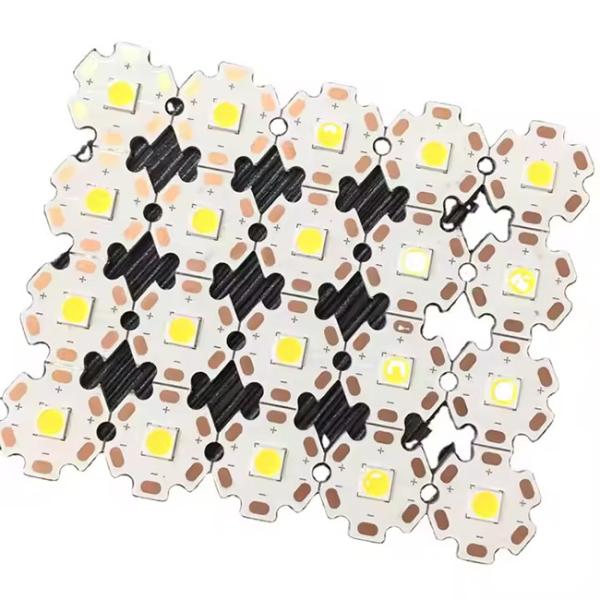

    1.6mm Customized 94v0 Aluminium LED PCB Board For Star LED PCBA

    Ask Lasest Price
    Brand Name : HS
    Model Number : Customized
    Price : 10USD/PCS
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 20000 square meters per month
    • Product Details
    • Company Profile

    1.6mm Customized 94v0 Aluminium LED PCB Board For Star LED PCBA

    1.6mm customized Aluminium 94v0 LED pcb board for star LED PCBA

    Technical parameters and process capability of metal substarte(MCPCB)
    ITEM
    SPECIFICATION
    Surface
    LF HASL,immersion gold,immersion siliver,OSP
    Layer
    Single side,double sided Multilayer and special structure
    Maximum PCB size
    240mmx1490mm OR 490x1190mm
    PCB thickness
    0.4-3.0mm
    Copper Foil thickness
    H 1/2/3/4(oz)
    Insulation layer thickness
    50/75/100/125/150/175/200(um)
    Metal Base thickness
    AIuminum(1100/3003/5052/6061),Copper AIuminum
    Metal Base thickness
    0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
    Shaping
    Die punching/CNC Route/V-Cut
    Test
    100% open&short test
    Shaping tolerance
    Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
    Hole tolerance
    +-0.5mm
    Min.Hole DIameter
    Single side 0.5/Double sided PTH0.3MM
    Solder mask
    green/white/black/red/yellow
    Min.letter height
    0.8mm
    Min.line space
    0.15mm
    Min.letter width
    0.15mm
    Sile screen color
    blue/white/black/red/yellow
    Sopecial hole
    Spot facing/cup hole/buried via hole/buried tank
    File format
    Gerber,Protel,PowerPCB,AutoCAD etc
    Type
    PNL size
    Copper Cladding
    Surface
    Materials
    LED Chip
    7390
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XML/5050
    7391
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XP/3535
    5130
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XP/3535
    1677
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XP/3535
    10166
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XP/3535
    2055
    4*5/97*80*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XP/3535
    6588
    4*5/97*80*1.6mm
    35um /1OZ
    Black
    Aluminum 1.0W/mK
    High power1W
    8165
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XRE
    8658
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    3030
    4595
    4*5/110*93*1.6mm
    35um /1OZ
    Black
    Aluminum 1.0W/mK
    XP/3535
    13110
    4*5/110*93*1.6mm
    35um /1OZ
    Black
    Aluminum 2.0W/mK
    5050/RGBW
    7714
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XBD/2525
    6932
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XBD/2525
    6692
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XBD/2525
    7392
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    XRE
    8804
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    MTG
    10074
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    2835
    8658
    4*5/110*93*1.6mm
    35um /1OZ
    White
    Aluminum 1.0W/mK
    3030

    FAQ
    Q: 1. CAN I HAVE A SAMPLE ?

    A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.

    Q: 2. WHAT IS THE LEAD TIME?

    A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.

    Q: 3. DO YOU HAVE ANY MOQ LIMIT?

    A: OUR MOQ IS 1PCS.

    Q: 4. CAN YOU OFFER BEST PRICE TO US?

    A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.

    Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?

    A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.

    Q: 6. WHAT FILE WE SHOULD OFFER?

    A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
